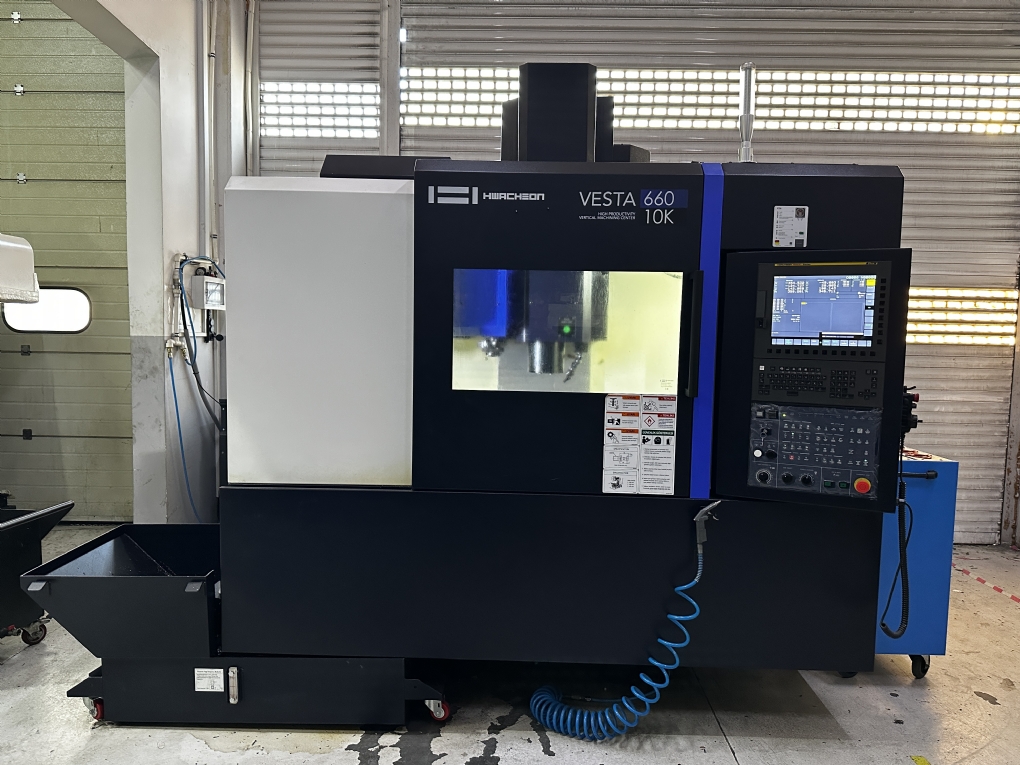

VESTA-660 ensures high productivity and high precision based on a machine structure optimized for parts machining. Cooling of the spindle and frames minimizes thermal displacement to ensure high precision during long-time machining.
Hwacheon software installed on the machine improves productivity and precision, provides better machining quality compared to existing machines.
Machine Specification
| Item | VESTA-660 | |||
|---|---|---|---|---|
| 10K | 12K | 15K | ||
| Travel | ||||
| X-axis Stroke | mm | 660 | 660 | 660 |
| Y-axis Stroke | mm | 430 | 430 | 430 |
| Z-axis Stroke | mm | 400 | 400 | 400 |
| Distance from Table Surface to Spindle Gauge Plane |
mm | 150 ~ 550 | 150 ~ 550 | 150 ~ 550 |
| Distance between Column to the center of the spindle |
mm | 440 | 440 | 440 |
| Table | ||||
| Working Surface | mm | 720 x 400 | 720 x 400 | 720 x 400 |
| Table Loading Capacity | kg | 560 | 560 | 560 |
| Table Surface Configuration (T slots W x P – No. of slots) |
mm | 18 x 100 / 3ea | 18 x 100 / 3ea | 18 x 100 / 3ea |
| Spindle | ||||
| Max Spindle Speed | rpm | 10,000 (Opt.: CTS) |
12,000 (Opt.: CTS) |
15,000 (Opt.: CTS) |
| Spindle Motor | kW | 11 / 7.5 [CTS.: 15 / 11] |
18.5 / 11 | 18.5 / 11 |
| Type of Spindle Taper Hole | – | ISO#40, 7/24 Taper (BT-40) |
ISO#40, 7/24 Taper (BT-40) |
ISO#40, 7/24 Taper (BT-40) |
| Spindle Bearing Inner Diameter | mm | Ø70 | Ø70 | Ø70 |
| Type of Spindle | – | Direct-Coupled | Direct-Coupled | Direct-Coupled |
| Method of Spindle Lubrication & Cooling | – | Grease Lubrication + Jacket Cooling |
Air-oil + Jacket Cooling |
Air-oil + Jacket Cooling |
| Feedrate | ||||
| Rapid Traverse (X / Y / Z) |
m/min | 36 / 36 / 30 | 36 / 36 / 30 | 36 / 36 / 30 |
| Motor | ||||
| Servo Motor (X / Y / Z) |
kW | 1.8 / 1.8 / 3.0 | 1.8 / 1.8 / 3.0 | 1.8 / 1.8 / 3.0 |
| Coolant Motor (Spindle / Chip Flushing) |
kW | 0.4 / 0.4 | 0.4 / 0.4 | 0.4 / 0.4 |
| Spindle Cooler (50/60Hz) | kW | 0.18 | 0.18 | 0.18 |
| ATC | ||||
| Type of Tool Shank | – | MAS-403 BT-40 (Opt.:BBT-40 / CAT-40) |
MAS-403 BT-40 (Opt.:BBT-40 / CAT-40) |
MAS-403 BT-40 (Opt.:BBT-40 / CAT-40) |
| Type of Pull Stud | – | MAS P40T-1 (45˚) | MAS P40T-1 (45˚) | MAS P40T-1 (45˚) |
| Tool Storage Capacity | ea | 20 (Opt.: 24) |
20 (Opt.: 24) |
20 (Opt.: 24) |
| Max. Tool Diameter (with / without Adjacent Tools) |
mm | Ø80 / Ø150 | Ø80 / Ø150 | Ø80 / Ø150 |
| Max. Tool Length | mm | 300 | 300 | 300 |
| Max. Tool Weight | Kg | 8 | 8 | 8 |
| Method of Tool Selection | – | Memory Random | Memory Random | Memory Random |
| Power Sources | ||||
| Electric Power Supply | kVA | 25 [CTS.: 30] |
25 [CTS.: 30] |
25 [CTS.: 30] |
| Compressed Air Supply (Pressure x Consumption) |
– | 0.5~0.7MPa x 690Nℓ/min |
0.5~0.7MPa x 690Nℓ/min |
0.5~0.7MPa x 690Nℓ/min |
| Tank Capacity | ||||
| Spindle Cooling / Lubrication | ℓ | 20 / 6 | 20 / 6 | 20 / 6 |
| Coolant | ℓ | 320 | 320 | 320 |
| Machine Size | ||||
| Height | mm | 2,535 | 2,535 | 2,535 |
| Floor Space (L x W) |
mm | 3,130 x 1,980 | 3,130 x 1,980 | 3,130 x 1,980 |
| Weight | Kg | 4,275 | 4,275 | 4,275 |
| NC Controller | – | Fanuc 0i-MF Plus | Fanuc 0i-MF Plus | Fanuc 0i-MF Plus |
49000
SOLD
49000
