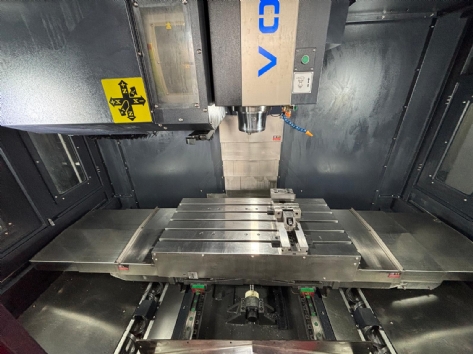

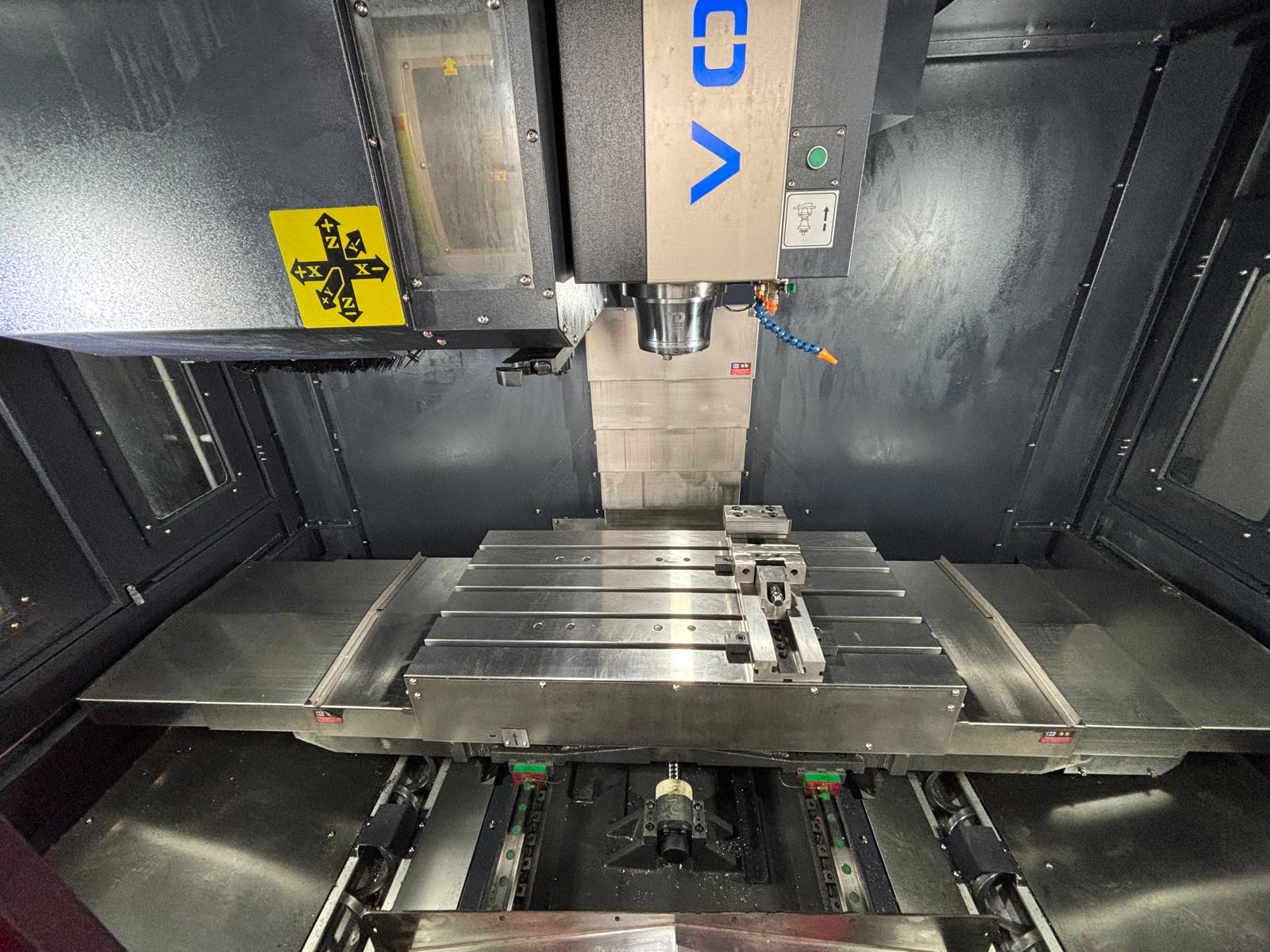

Table Dimensions (mm): 1200 x 600
Axis Movements (xyz) Millimeters: 1100x600x600
T-Slot Dimensions (mm): 18x5x100
Slide Type: Roller linear
Slide Width (mm): 45x45x45
Spindle Diameter (mm): 40
Idle Speeds (xyz) (mm/min): 36/36/36
Cutting Feed Rate (mm/min): 1/12000
Magazine Type: Lever Type: ATC
Spindle Table Distance (mm): 120-720
Spindle Motor (kw): 11/15
Spindle Speed (rpm): 10,000/12,000/15,000 ops
Spindle Taper: BT40/BBT40 ops
Spindle Type: Belt / Direct Motor
Table Load (Kg): 800
Number of Tools (Pieces): 24/30 ops
Machine Dimensions (mm): 3300x2400x2800
Machine Weight (kg): 6700

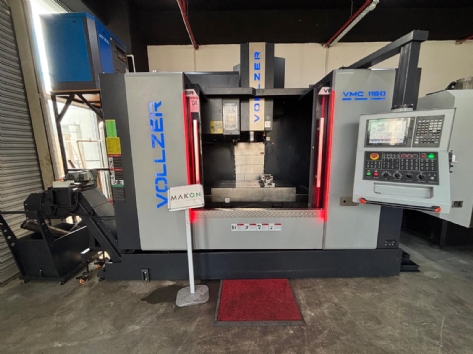

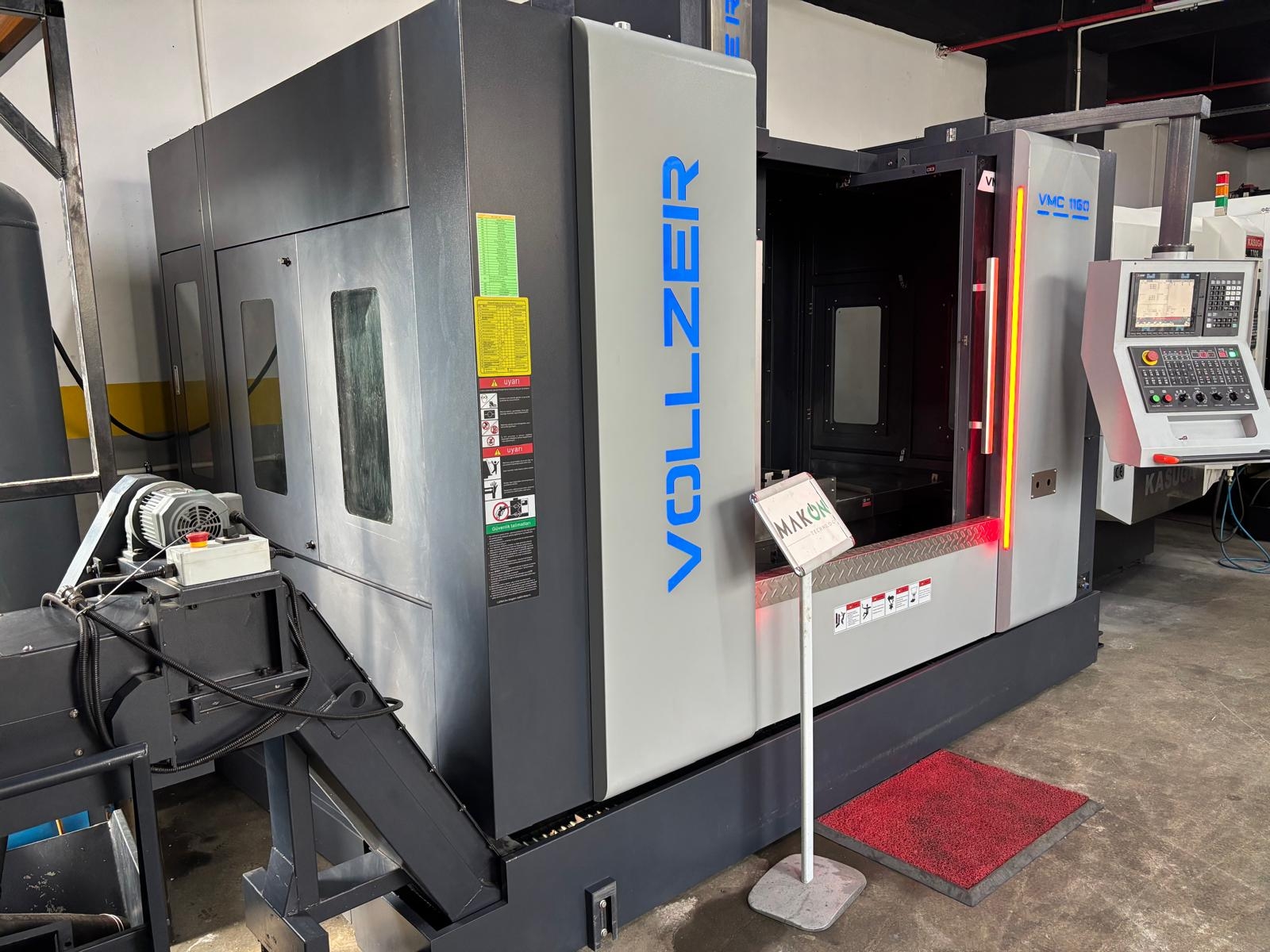

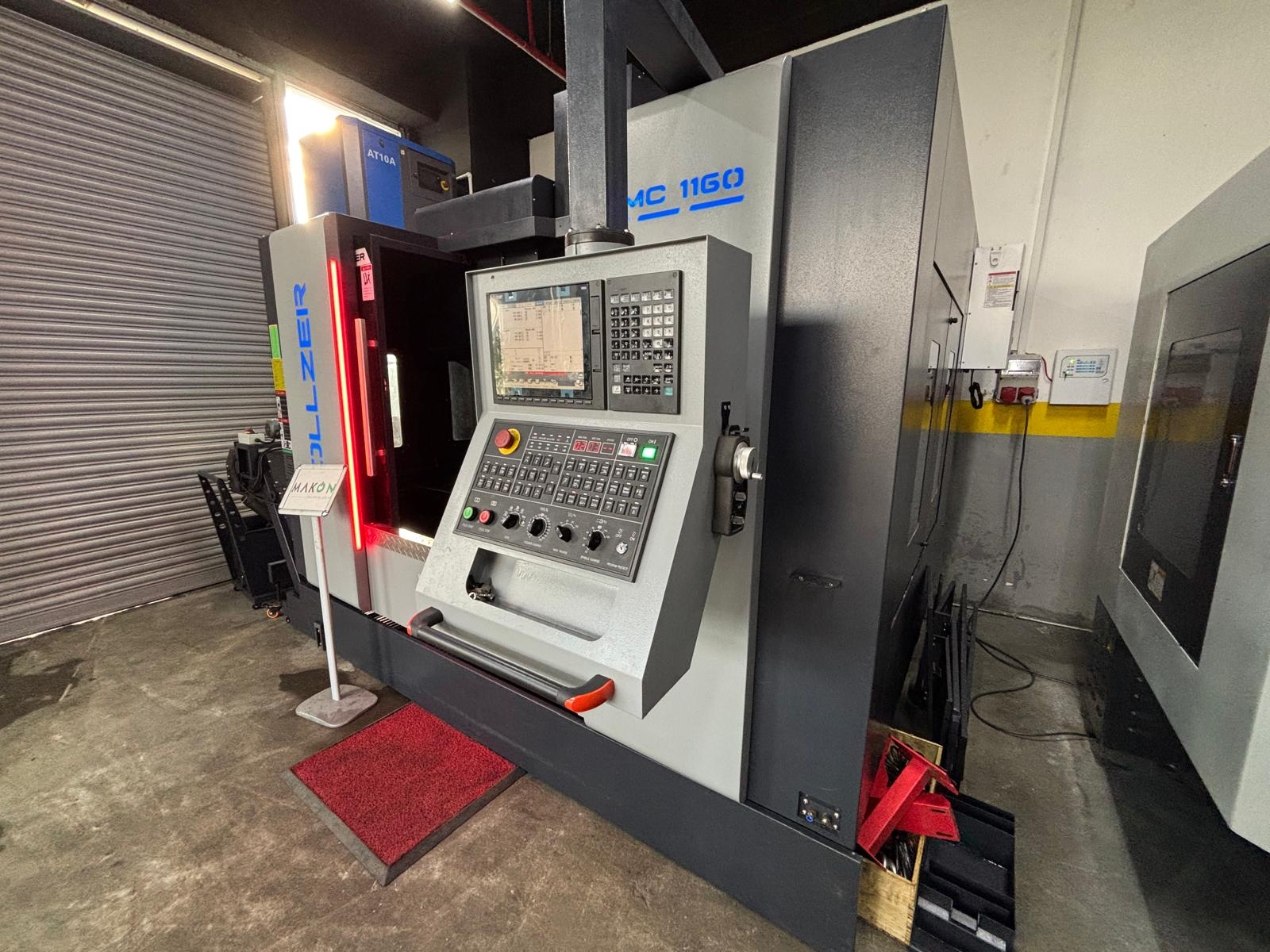

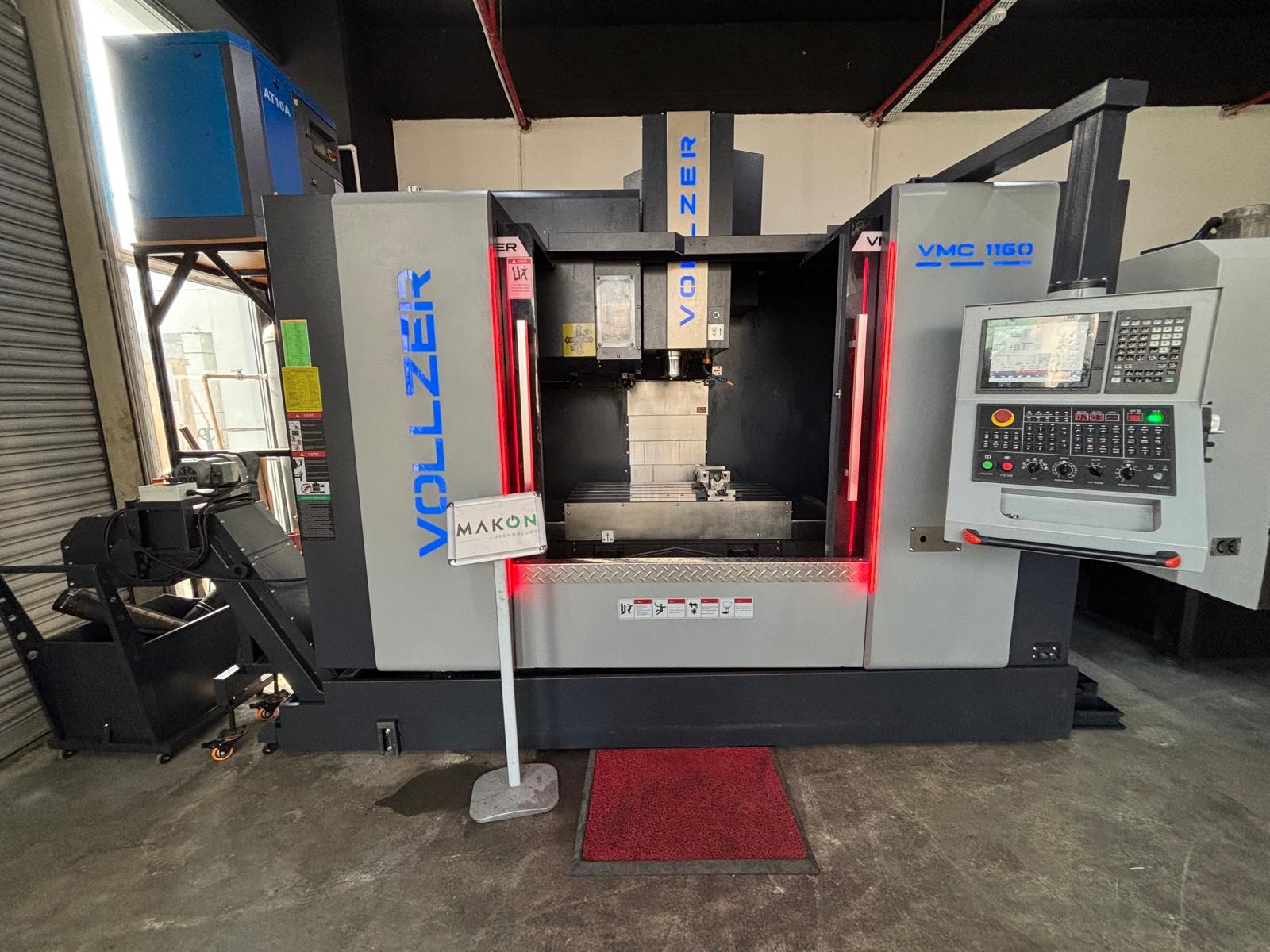

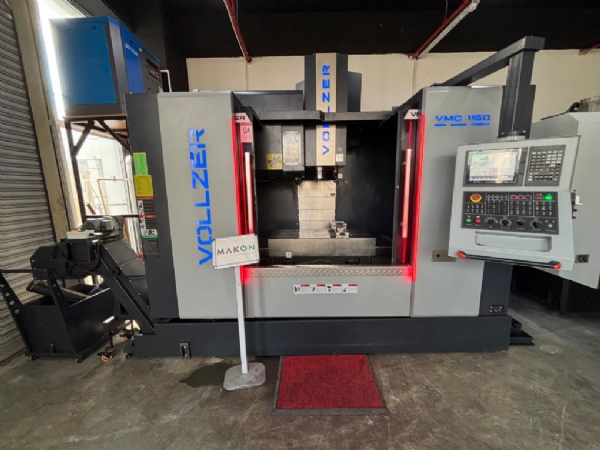

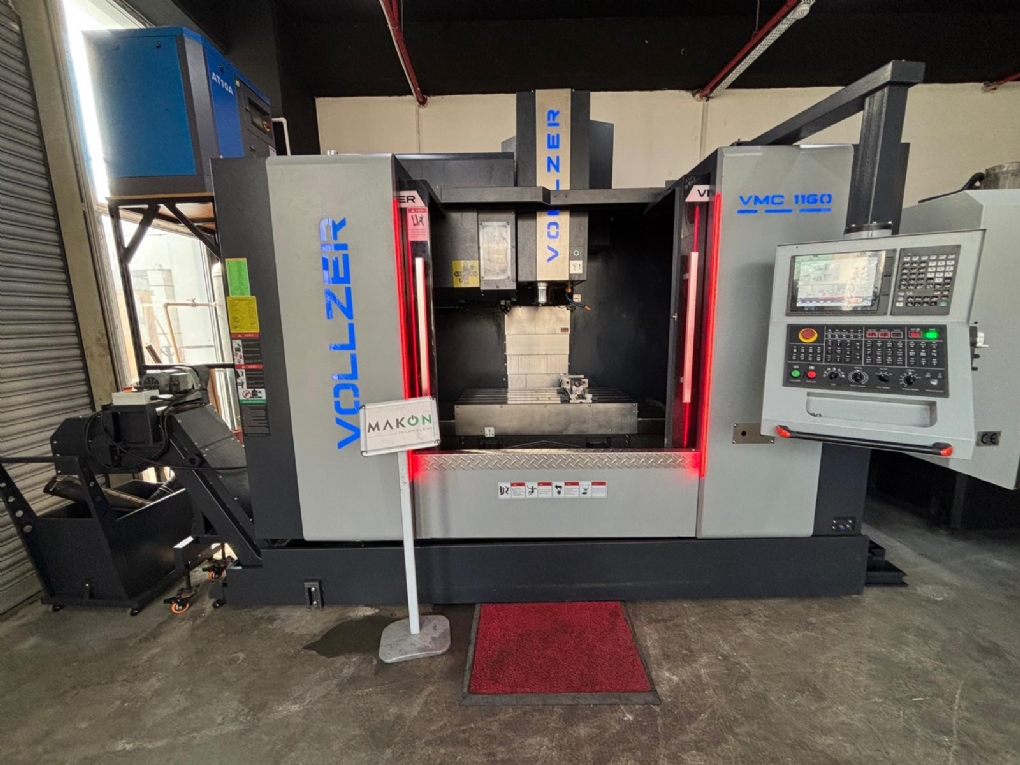

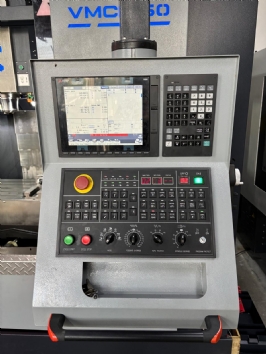

VOLLZER VMC 1160
2024 MOD./Installation March 2025
1100x600x700..45MM CORE
M80 FULL MOLDING
BBT40 DIRECT 12,000 RPM
24 ATC MAGAZINE

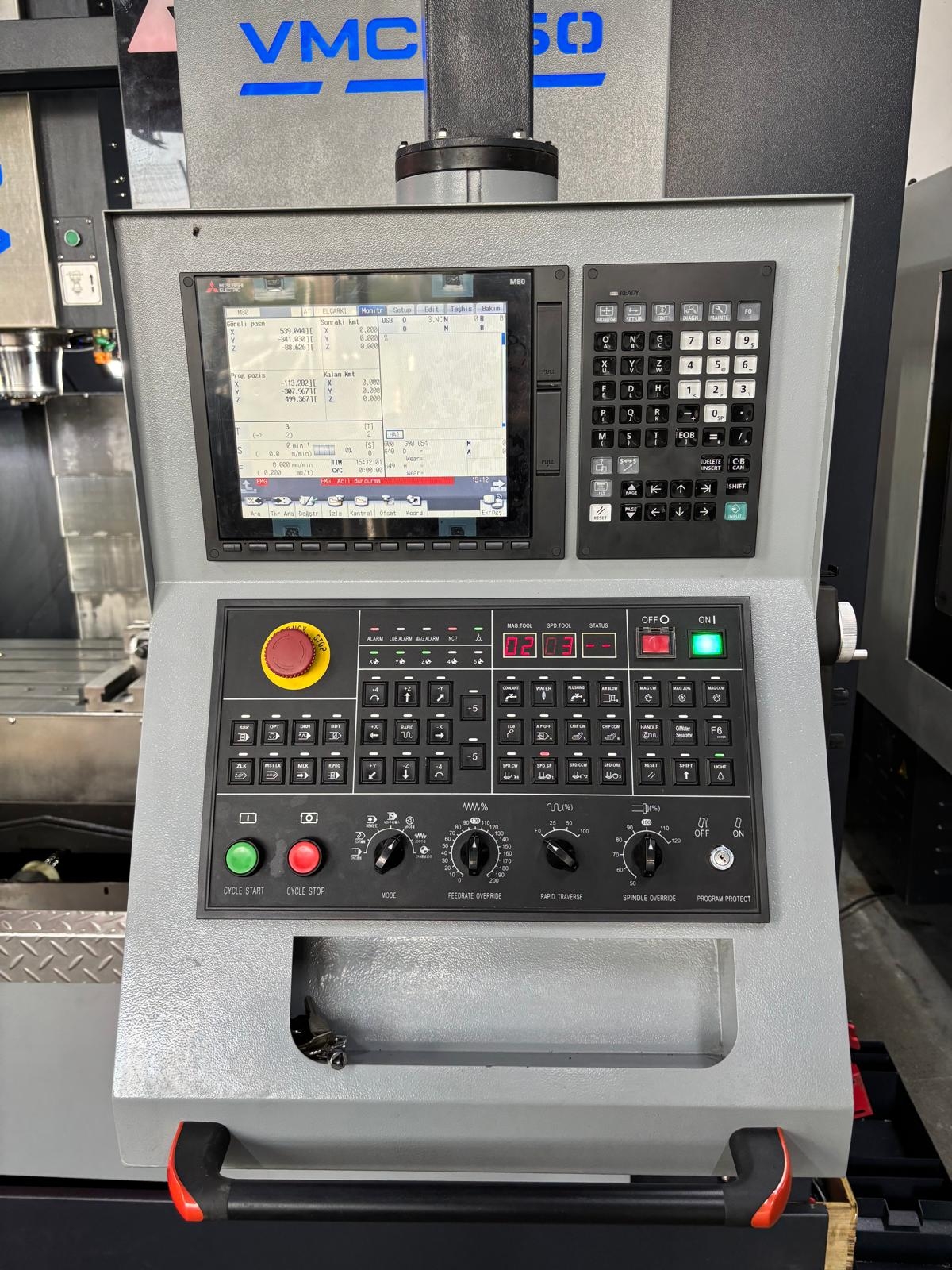

WIRELESS HANDLE
STAINLESS STEEL INNER CABIN
DOUBLE INNER CABIN CONVEYOR
PALLET CONVEYOR
