※ MC : Turnmill
| Item | CUTEX-160 | ||||
|---|---|---|---|---|---|
| CUTEX-160A | CUTEX-160B | CUTEX-160A MC | CUTEX-160B MC | ||
| Capacity | |||||
| Swing over bed | mm | Ø550 | Ø550 | Ø550 | Ø550 |
| Max Cutting Diameter | mm | Ø300 | Ø300 | Ø260 | Ø260 |
| Standard Cutting Diameter | mm | Ø186 | Ø186 | Ø204 | Ø204 |
| Max Cutting Length | mm | 300 | 284 | 225 | 209 |
| Chuck Size (Main) | inch | 6 | 8 | 6 | 8 |
| Spindle | |||||
| Type of Spindle Nose | ASA | A2-5 | A2-6 | A2-5 | A2-6 |
| Max Spindle Speed | rpm | 6,000 | 4,500 | 6,000 | 4,500 |
| Through Spindle Hole Diameter | mm | Ø56 | Ø62 | Ø56 | Ø62 |
| Max Bar Size | mm | Ø45 | Ø51 | Ø45 | Ø51 |
| Spindle Bearing Inner Diameter | mm | Ø90 | Ø100 | Ø90 | Ø100 |
| Spindle Motor | kW | 15 / 7.5 | 15 / 7.5 | 15 / 7.5 | 15 / 7.5 |
| Turret | |||||
| Number of Tool Station | ea | 12 | 12 | 12 | 12 |
| Tool Size (Out Dia x Boring bar size) |
mm | ◻25 × Ø40 | □25 × Ø40 | □25 × Ø40 | □25 × Ø40 |
| Turret Indexing Time | sec/step | 0.15 | 0.15 | 0.15 | 0.15 |
| Axes | |||||
| Rapid Traverse (X / Z) |
m/min | 36 / 36 | 36 / 36 | 36 / 36 | 36 / 36 |
| Max. Stroke (X / Z) |
mm | 170 / 335 | 170 / 335 | 170 / 335 | 170 / 335 |
| Feed Motor (X / Z) |
kW | 1.8 / 1.8 | 3.0 / 1.8 | 1.8 / 1.8 | 3.0 / 1.8 |
| Tailstock | |||||
| Quill Diameter | mm | Ø60 | Ø60 | Ø60 | Ø60 |
Sektörde 20 yıla yakın tecrübemizle sanayici dostlarımıza güvenilir ve uygun çözümler sunuyoruz

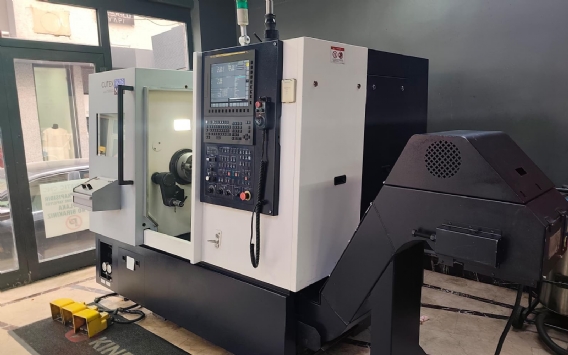

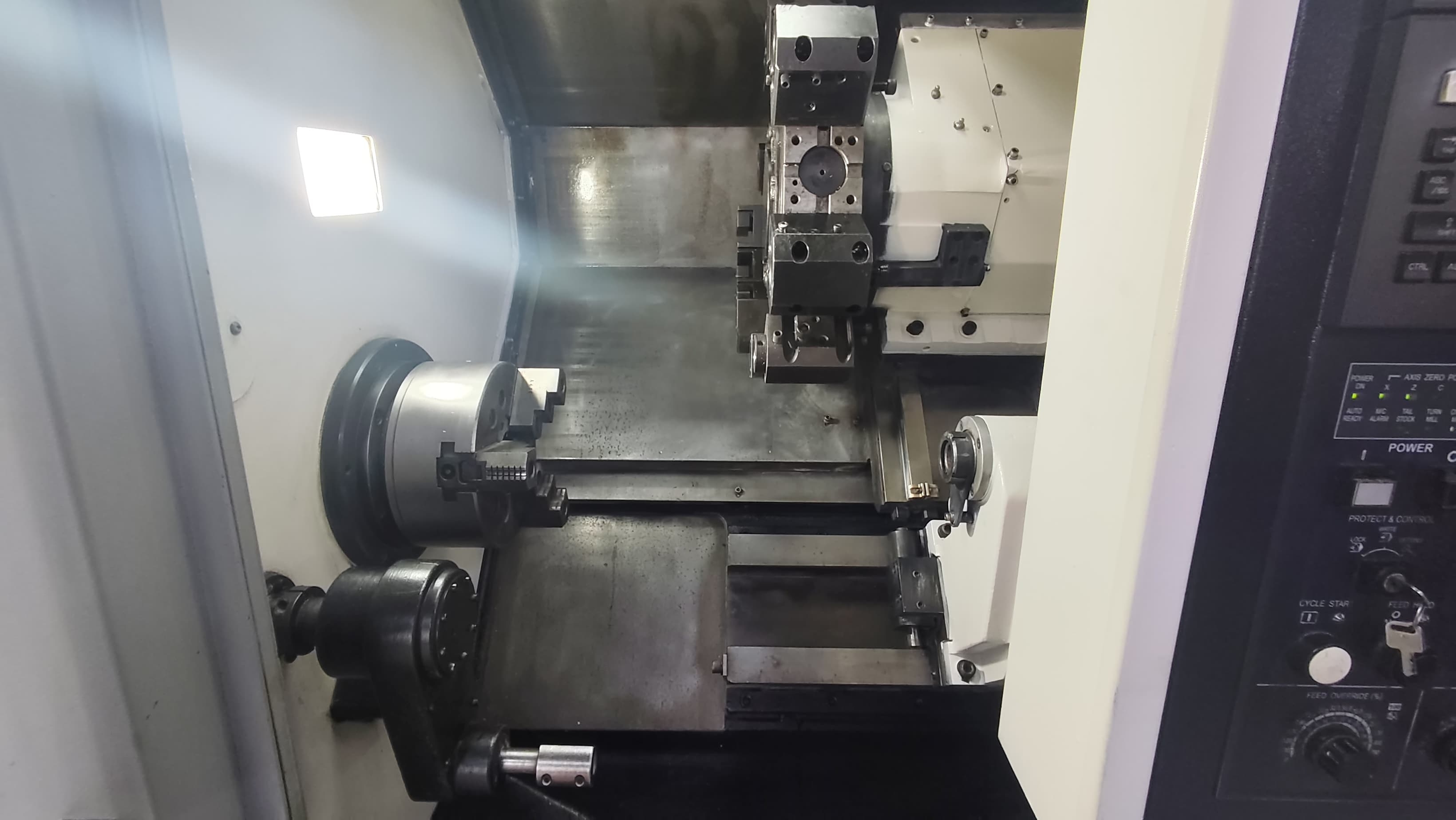

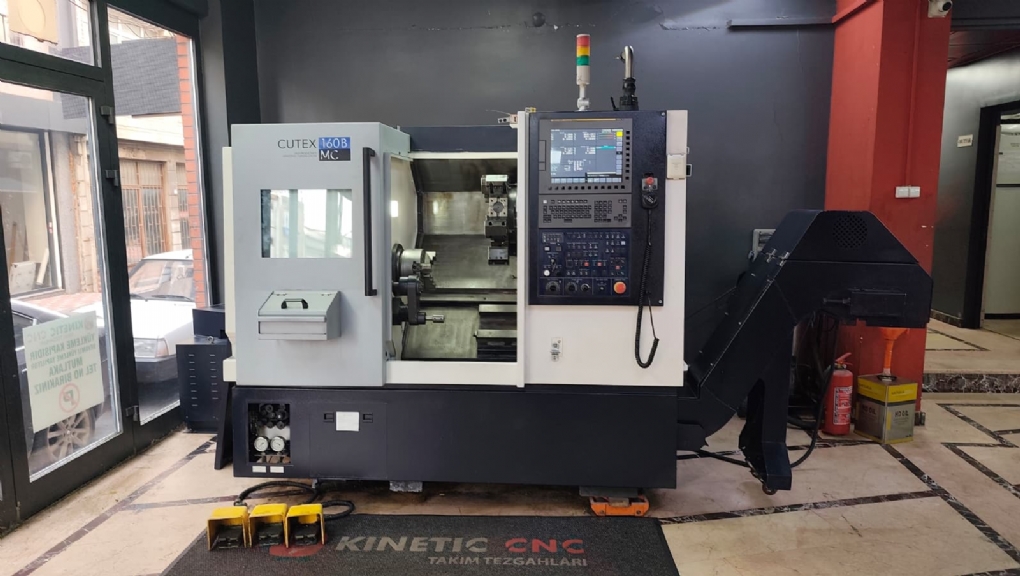

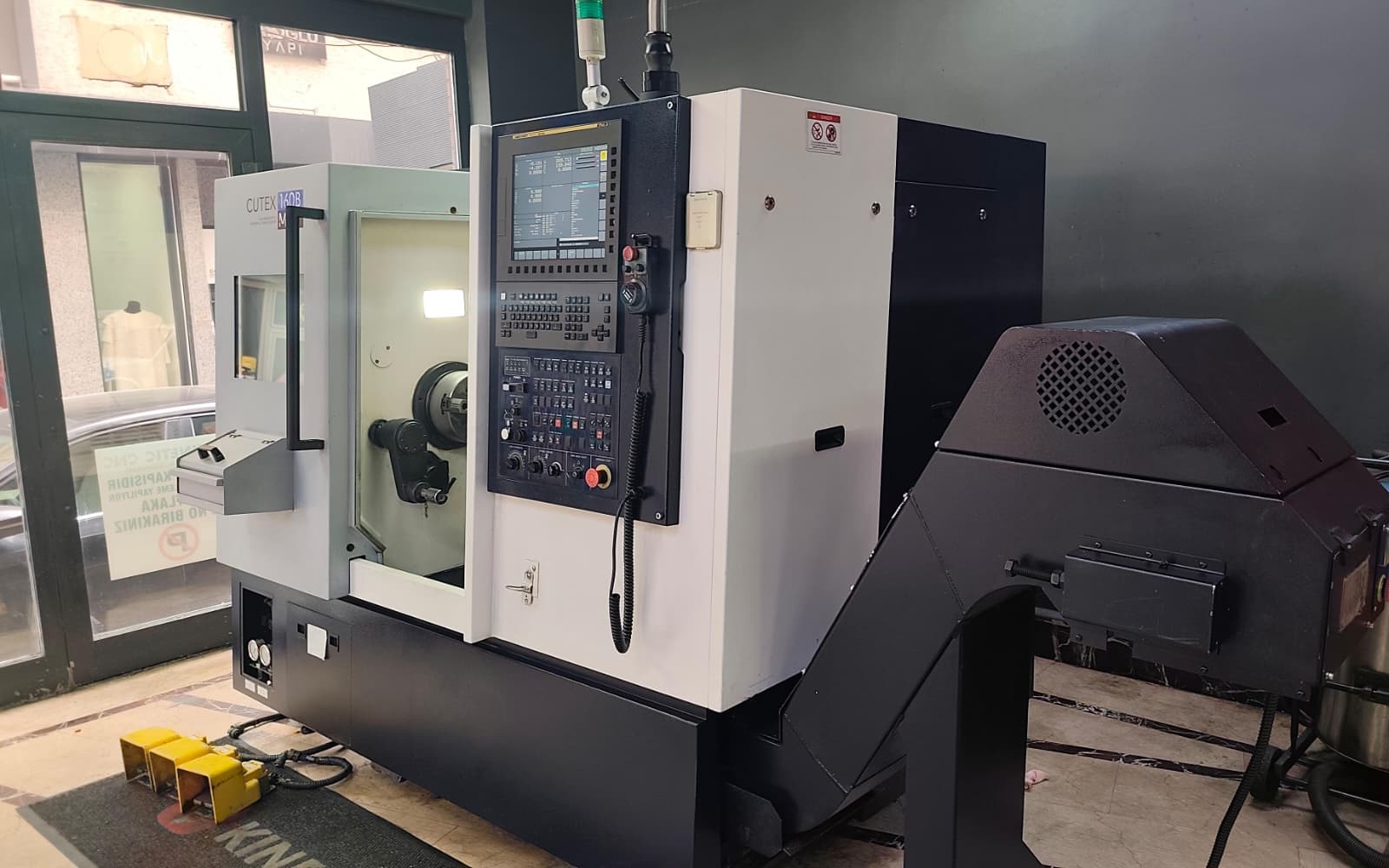

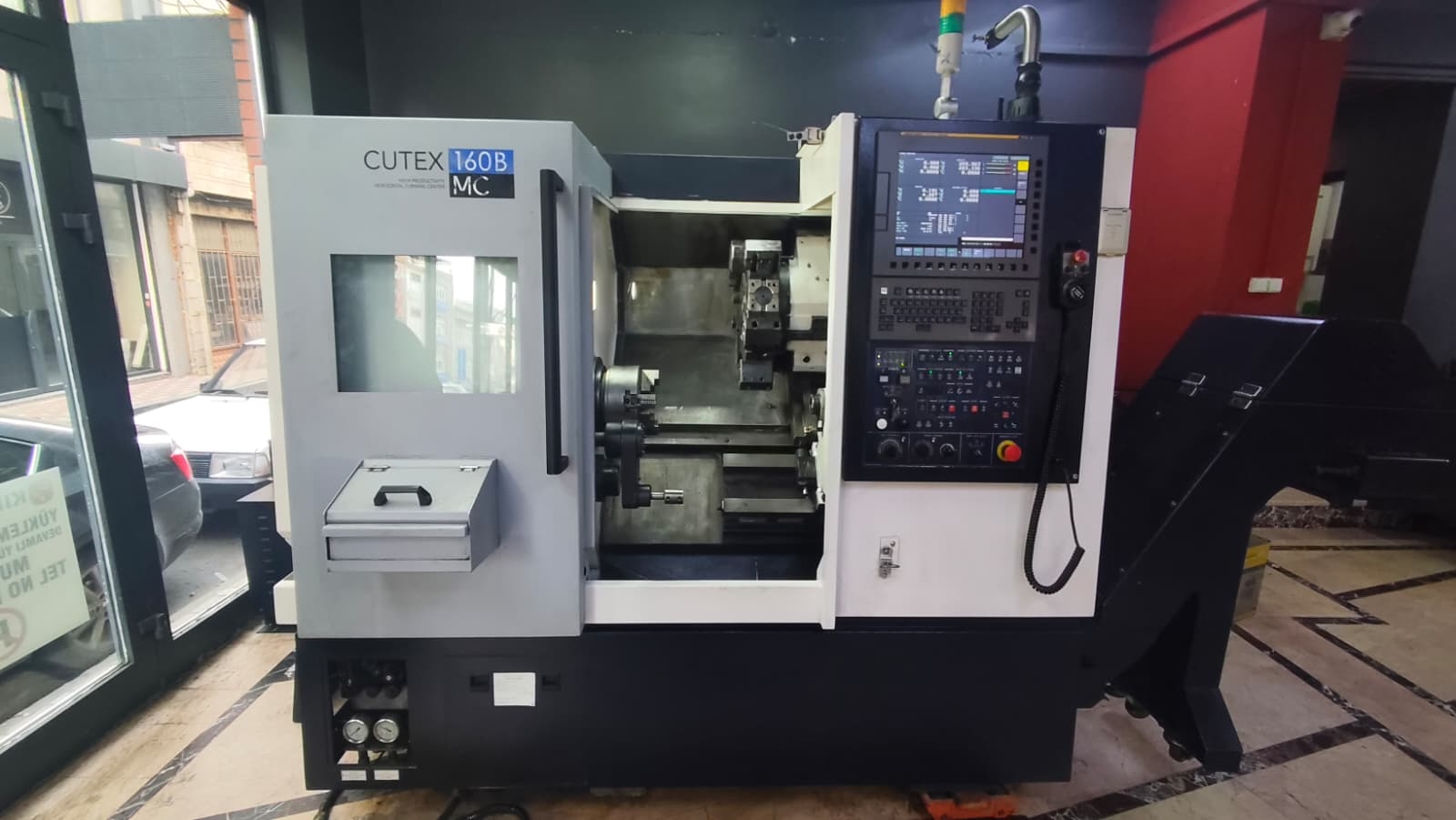

HWACHEON CUTEX 160 B
C eksenli
Parça yakalama kollu
8” ayna
2022 Model
300 çap tornalar
Makine mağazamızda elektriğe bağlı aktif çalışır durumdadır istenildiği zaman parça ve test kesimine uygundur.
39000
SATILDI
SATILDI
SATILDI
SATILDI
39000
